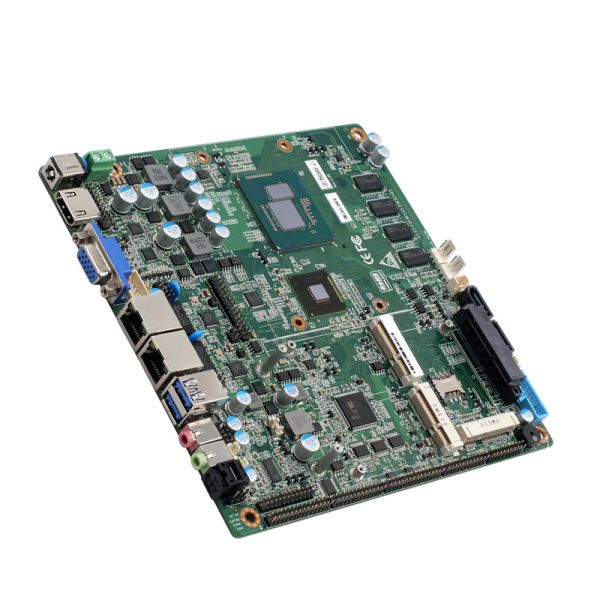

| Processor | CPU | Intel Mobile 5th Broadwell-H i5-i7 CPU( 5th only have I7) Integrated Intel® Core™ Haswell i7-5850HQ Processor quad cores 8 threads 2.7Ghz Max Turbo Frequency 3.6Ghz |
| CPU package | BGA |
| Chipset | QM87/HM86/HM87 |
| BIOS | UEFI BIOS |
| Ram | Technology Architecture | Single channel DDR3 1066/1333/1600MHz |
| Capacity | Integrated 2GB4GB DDR3 |
| RAM Slot | 1*Ram socket max expansion 12gb |
| Video | Graphic Controller | Intel® Iris® Pro Graphics 6200 |
| Dual LVDS and EDP | Support dual channel 24bits output,Max support resolution :1920 x 1200 EDP max support resolution 3840*2160(only pick one of two) |
| HDMI | Max support resolution HDMI(1.4)3840*2160 |
| VGA | VGA support max resolution:2880*1800((depends on CPU) |
| Dual display support | LVDS + VGA,LVDS+HDMI,HDMI+VGA Synchronous or asynchronous display |
| Triple display support | LVDS+HDMI+VGA Synchronous or asynchronous display |
| I/O backpanel | Interface | 1*VGA,1*HDMI,2*LAN,2*USB3.0,1*line-OUT/MIC_IN 1*SPDIF |
| NETWORK | CONTROLLER | 2*RTL8111E gigabit lan Port,RJ45 port(When the rear is 2 sets of USB interfaces, only with 1*the network card ,) |
| AUDIO | CONTROLLER | REALTEK HD ALC662 audio decoding (left and right channel + microphone) |
| Super I/O | CONTROLLER | IT8786E |
| HARDWARE MONITORING | Watchdog timer | 0-255 seconds, providing a watchdog routine |
| Cooler | Aluminum + copper fan radiator |
| I/O | USB | 4*USB3.0 compatible with USB2.0/1.1 (2 for pin header), 6*USB2.0 2 for standard USB interface, 4 for pin header (when 2 NICs, 6 USB2.0) All for pin headers) |
| Com | 5 RS-232, 1 RS422/485 optional, RS485 supports automatic flow control |
| PS/2 | 5×2 2mm Pin |
| Touch panel | Support touch screen(4wire 5wire 8wire) |
| GPIO | 8-bit, providing routines, freely defined input/output, 3.3V@24mA level |
| EXPANSION BUS | Mini-PCle | 2 Mini-PCIe slots for PCIe and USB devices |
| STORAGE | SATA | 2 standard SATA3.0 interfaces (only 1 SATA3.0 when the chipset is HM86) |
| SATA_HDD | 1 SATA_HDD (SATA2.0) interface |
| M-SATA | 1*M-SATA deck (SATA3.0) |
| Power supply | Power Type | Single input DC power supply,12V-DC,+/-5% |
| Power Consumption | 20W |
| WORKING ENVIRONMENT | Working Temperature | -20℃ ~ +60℃ |
| Storage Temperature | -40℃ ~ +85℃ |
| Working Humidity | 0% ~ 90%relative humidity, No condensation |
| Storage Humidity | 0% ~ 90%relative humidity, No condensation |
| MEASURE | Size | 170 x 170 mm |
| Weight | 0.5KG |
